RTD12

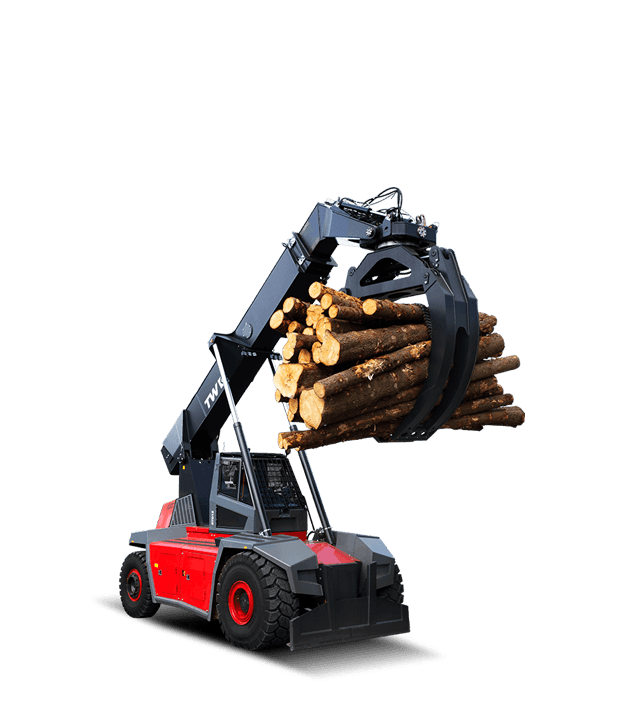

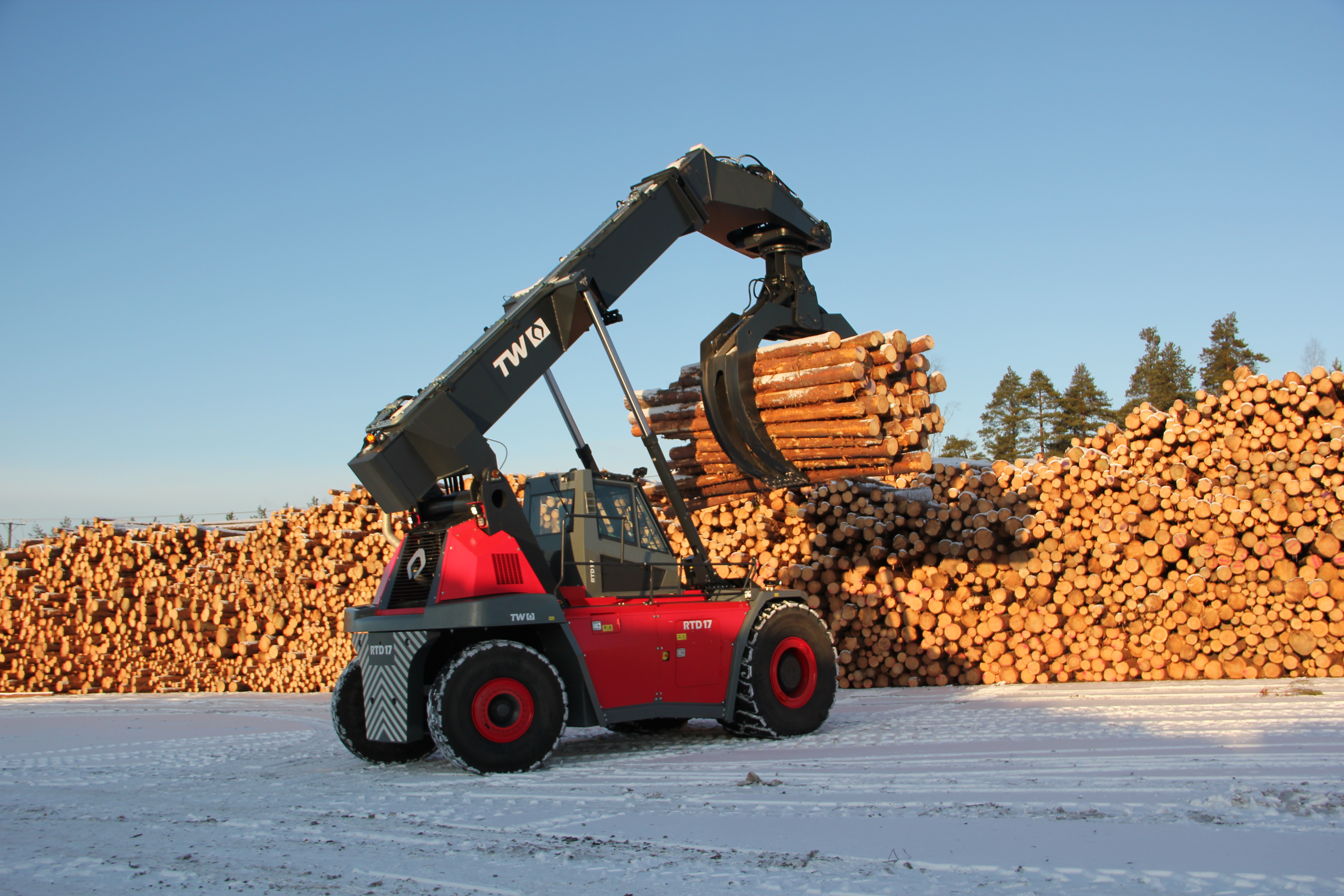

RTD12 is a revolutionary log handler. Its appearance is non-interferingly conventional, but still modern. The technology built into it, however, is nothing short of revolutionary and it makes it the most energy efficient diesel operated equipment for the log yards.
Read MoreRTD17 Tier5
RTD17 Tier5 is a proven sawmill machine used by most large sawmill companies in Central Europe. It is the master in unloading trucks and can pick a full bundle with a single take from most trucks outside of Scandinavia.
Read MoreRTD3126 Tier5

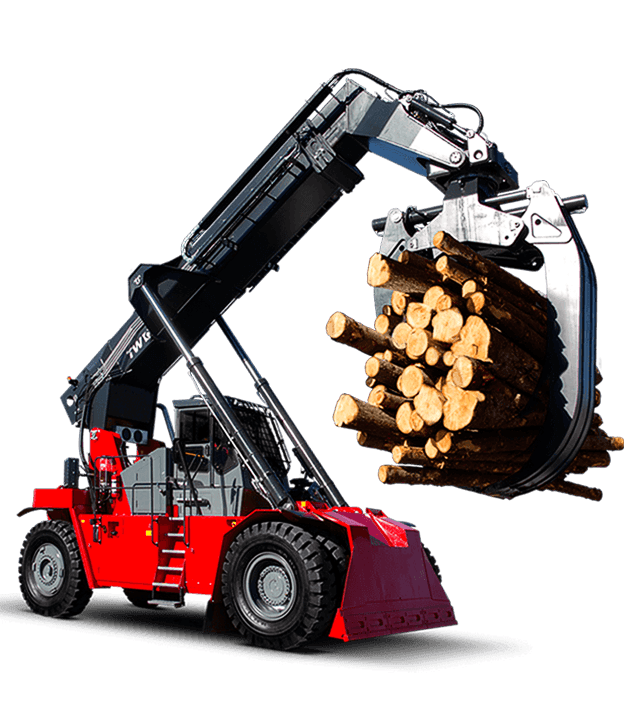

Most of the large European and South American companies which use round wood as a raw material have used RTD3126 for years as the ultimate wood handling equipment.
Read MoreComparison Chart
Technical Information | RTD12 | RTD17 Tier5 | RTD3126 Tier5 |
---|---|---|---|
Lift Capacity | 8000kg...12 000kg, intelligent | 17 000kg | 31 000kg |
Own weight | 36 800kg | 50 500kg | 73 900kg |
Stacking height | Up to 7.9m (with 3.7P900 and 4.0P900 grapples) | Up to 7.2m (with 4.8P900 grapple) | Up to 7.9m |
Reach | 3.0m, load distance 5.1m from the front face | 3.0m, load distance 5.1m from the front face | 4.7m, load distance 7m from the front face |
Standard grapple | 4.0m² (4.0P900) | 5.5m² (5.5P900) | 7.8m² (7.8P900) |
Wheel base | 4.8m | 4.8m | 5.7m |
Turning Radius | R 6.9m | R 6.5m | R 7.8m |
Engine Power | 210kW | 265kW | 315kW |
Travelling speed | 30km/h | 30km/h | 27km/h |
